Semiconductor Equipment Manufacturing, Inc. was set initially established in Taiwan. Our company specializes in of Advantest T5581. With powerful functions, high quality, reasonable prices and excellent after-sale service, our products have been found popularity with customers.

Procured from certified vendors, these products have been manufactured as per the quality parameters prevalent at global level. We insist on offering good products, Advantest T5581, and services to our clients.

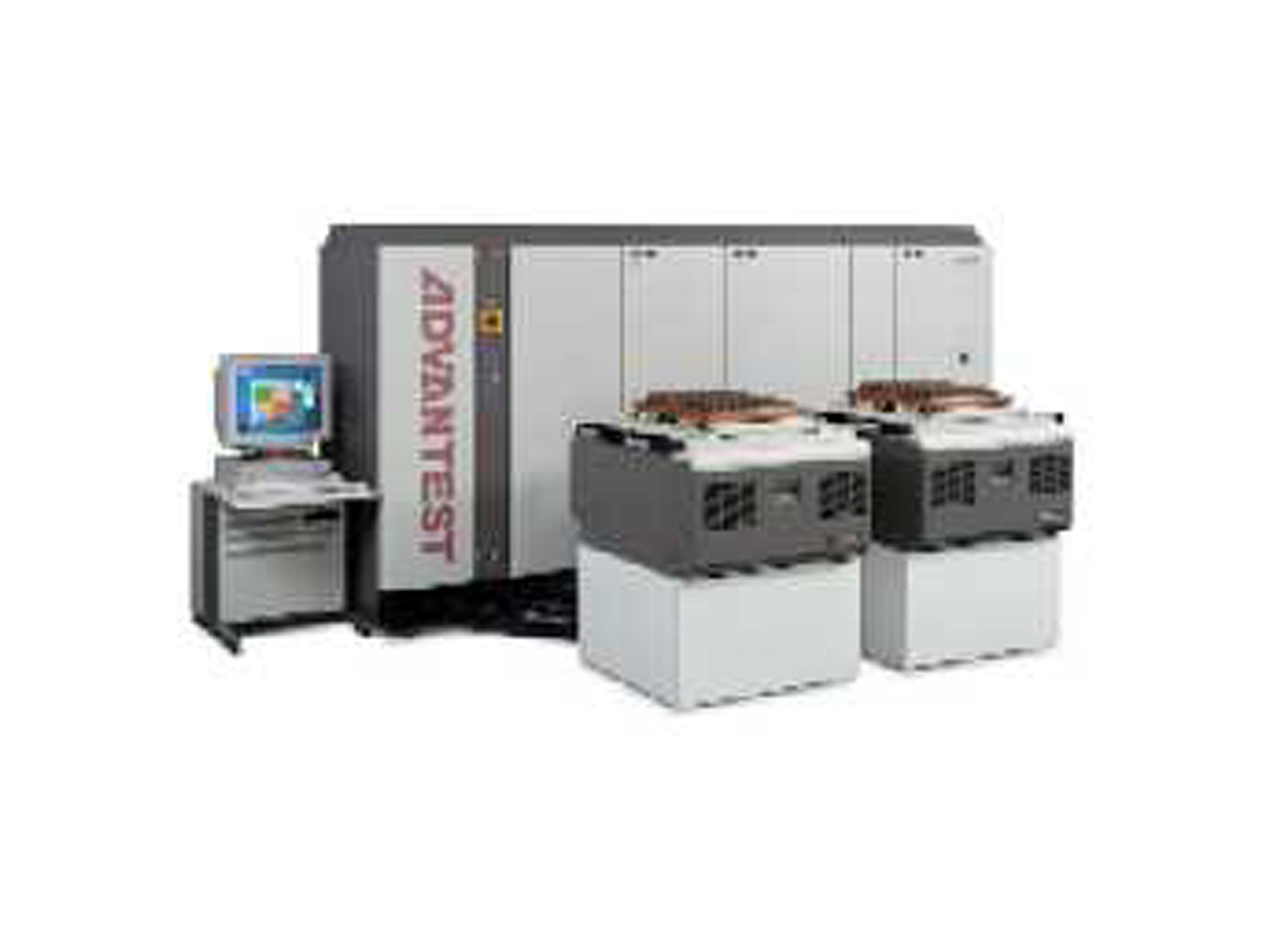

Advantest T5581
Model: Advantest T5581
Advantest T5581


Hardworking on achieving customers’ requirement is the target and mission we aim to do. Semiconductor Equipment Manufacturing, Inc. also emphasize this on employees’ training for lifting the quality of customer services, which is for providing better service to customers.

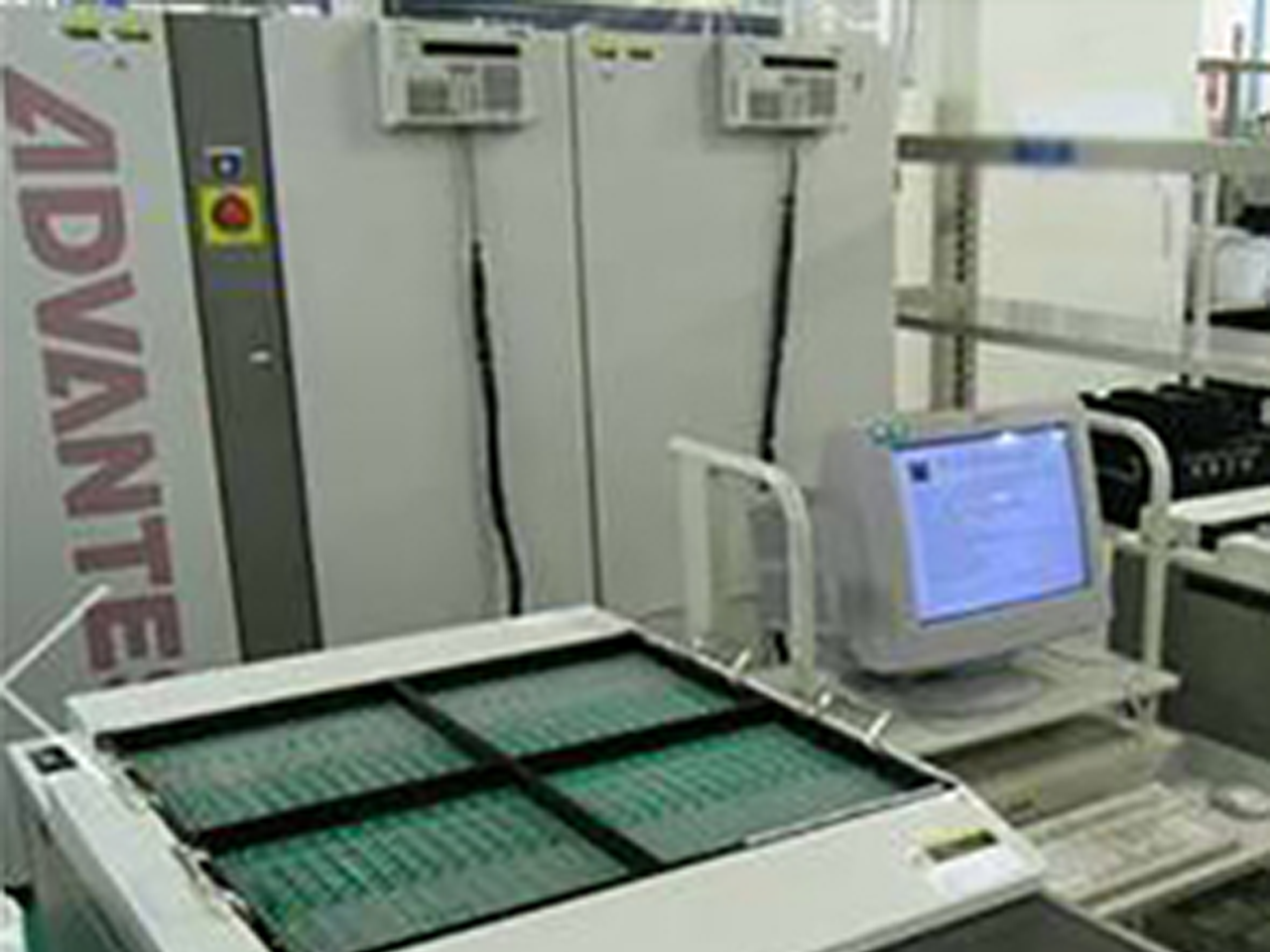

Advantest T5581

Semiconductor Equipment Manufacturing, Inc. is a professional enterprise, which has a well-educated and well-trained technological and managerial staff. We concentrate on semiconductor equipment with proficient experiences for years. We're a professional supplier supplying series of Advantest T5581.

Our Advantest T5581 have been adopted by many companies and have been successfully exported to various countries in the world. Now we sincerely expect to develop long-term cooperation with you.

 CONFIGURATION OF TEST HEAD
 PIN CONFIGURATION 1.640DR+288I/O
 2.960DR+288I/O
 3.640DR+576I/O
 4.960DR+576I/O [1-4] ............> 4
 TH CABLE LENGTH 1.5M
 2.8M [1,2] ......................> 1
 NUMBER OF TEST HEAD [1,2] ...........................> 2
 CONFIGURATION OF TEST HEAD 1
 TEST HEAD TYPE 1.816CH
 2.1600CH [1,2] .....................> 2
 PE BOARD TYPE 0.NO BOARD
 1.BGM-021633 (FULL PE)
 2.BGM-021633X02 (I/O PE)
 3.BGM-021633X03 (DR PE)
 SLOT 33 36 39 161 164 167
 CHILD A ....> 1 1 1 1 1 1
 CHILD B ....> 1 1 1 1 1 1
 CHILD C ....> 1 1 1 1 1 1
 CHILD D ....> 1 1 1 1 1 1
 CHILD E ....> 1 1 1 1 1 1
 CHILD F ....> 1 1 1 1 1 1
 CHILD G ....> 1 1 1 1 1 1
 CHILD H ....> 1 1 1 1 1 1
 CONFIGURATION OF TEST HEAD 2
 TEST HEAD TYPE 1.816CH
 2.1600CH [1,2] .....................> 2
 PE BOARD TYPE 0.NO BOARD
 1.BGM-021633 (FULL PE)
 2.BGM-021633X02 (I/O PE)
 3.BGM-021633X03 (DR PE)
 SLOT 33 36 39 161 164 167
 CHILD A ....> 1 1 1 1 1 1
 CHILD B ....> 1 1 1 1 1 1
 CHILD C ....> 1 1 1 1 1 1
 CHILD D ....> 1 1 1 1 1 1
 CHILD E ....> 1 1 1 1 1 1
 CHILD F ....> 1 1 1 1 1 1
 CHILD G ....> 1 1 1 1 1 1
 CHILD H ....> 1 1 1 1 1 1
 CONFIGURATION OF DPU
 1'ST DPU : STN 1,2 [Y,N] ..........................> YES
 2'ND DPU : STN 1,2 [Y,N] ..........................> YES
 TEST HEAD 1 DC CONFIGURATION [1-32] .............> 1-32
 10V PPS SPEC [1,2] (1:0.4A 2:0.8A) ......> 2
 10V PPS CONFIGURATION [1-64] .............> 1-64
 16V PPS CONFIGURATION [33-64] ............>
 HV PPS CONFIGURATION [1-4] .............>
 TEST HEAD 2 DC CONFIGURATION [1-32] .............>
 10V PPS SPEC [1,2] (1:0.4A 2:0.8A) ......> 2
 10V PPS CONFIGURATION [1-64] .............>
 16V PPS CONFIGURATION [33-64] ............>
 HV PPS CONFIGURATION [1-4] .............>
 1'ST GPIB I/F BOARD 0.NONE
 1.BGR-010944X01
 2.BGR-010944X02
 3.BGR-010944X03
 4.BGR-010944X04
 5.BGK-012718 [0-5] .........> 0
 2'ND GPIB I/F BOARD 0.NONE
 1.BGR-016793 (DPU I/F)
 2.BGR-010944X05
 3.BGK-012718X02 [0-3] .........> 1
 DMM TYPE 1.TR6861
 2.R6871E
 3.R6551
 4.R6552T / ADCE7451T [1-4] .........> 4
 AC FREQUENCY (Hz) [50,60] ........................> 50
 CONFIGURATION OF ALPG
 NUMBER OF ALPG [1,2,4] ..............................> 2
 CONFIGURATION OF DBM
 DBM OPTION EXIST [Y,N] ..............................> NO
 CONFIGURATION OF FM
 NUMBER OF FM BOARD [0-4] ............................> 0
 PATTERN MEMORY(PM) BOARD EXIST [Y,N] ................> NO
