As a professional supplier and exporter, our DNS Semiconductor Equipment products are popular with customers in Taiwan, due to our powerful distribution network. With rapid development, we have attained ISO9001 certification and won many honorary titles. To learn more about what we can do for you, please contact us at any time. We look forward to establishing a good and long-term business relationship with you.
We have products in stock for our clients. A wide range of DNS Semiconductor Equipment used for a variety of industries are offered to our clients in standard as well as required specifications.
DNS Semiconductor Equipment

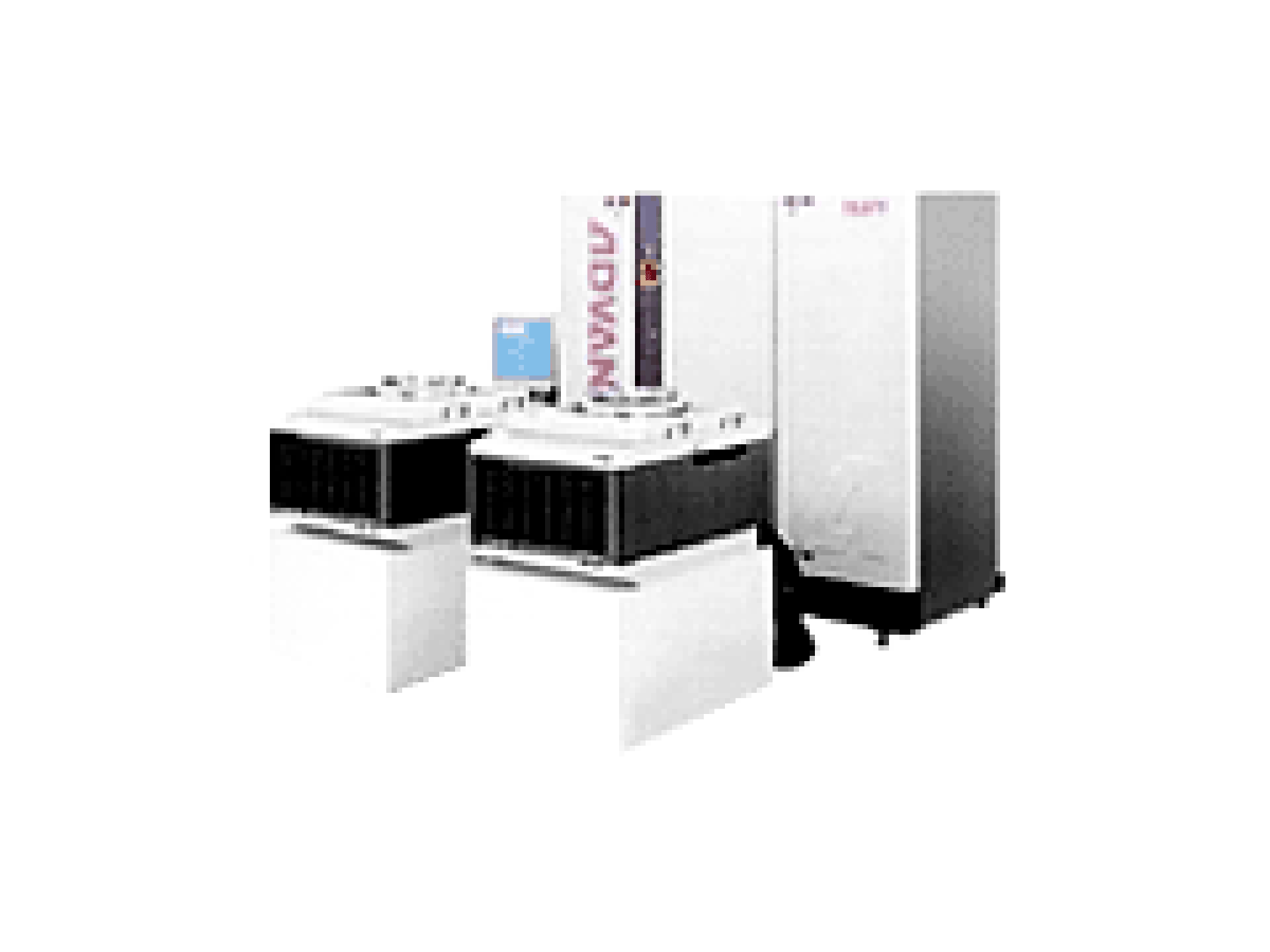

Model: Advantest T5365P
Advantest T5365P
1. SEM was established in 1982. We have always kept our excellent service attitude.
2. Wholeheartedly focus on detecting and adjusting.
/DIAG/G
SYSTEM CONFIGURATION GENERATE

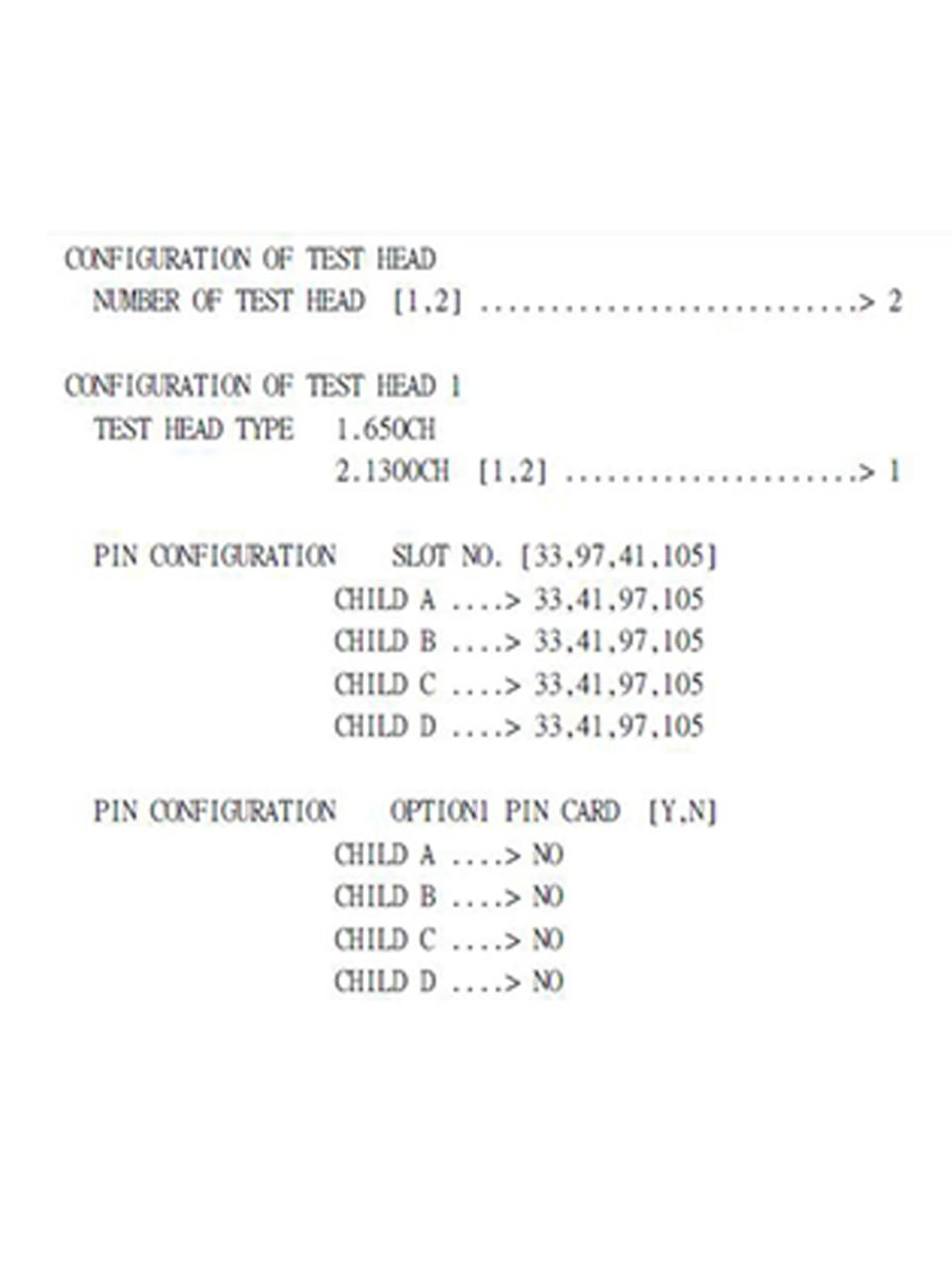

CONFIGURATION OF TEST HEAD
NUMBER OF TEST HEAD [1,2] ...........................> 2
CONFIGURATION OF TEST HEAD 1
TEST HEAD TYPE 1.650CH
2.1300CH [1,2] .....................> 1
PIN CONFIGURATION SLOT NO. [33,97,41,105]
CHILD A ....> 33,41,97,105
CHILD B ....> 33,41,97,105
CHILD C ....> 33,41,97,105
CHILD D ....> 33,41,97,105
PIN CONFIGURATION OPTION1 PIN CARD [Y,N]
CHILD A ....> NO
CHILD B ....> NO
CHILD C ....> NO
CHILD D ....> NO
PIN CONFIGURATION OPTION2 PIN CARD [Y,N]
CHILD AB ...> YES
CHILD CD ...> YES
BYPASS CAPACITOR TO 10V/16V PPS (PCON)
1.NON-EXISTENT
2. EXISTENT [1,2] ..............> 1
BYPASS CAPACITOR TO HV PPS (PCON)
1.NON-EXISTENT
2. EXISTENT [1,2] ..............> 1
CONFIGURATION OF TEST HEAD 2
TEST HEAD TYPE 1.650CH
2.1300CH [1,2] .....................> 1
PIN CONFIGURATION SLOT NO. [33,97,41,105]
CHILD A ....> 33,41,97,105
CHILD B ....> 33,41,97,105
CHILD C ....> 33,41,97,105
CHILD D ....> 33,41,97,105
PIN CONFIGURATION OPTION1 PIN CARD [Y,N]
CHILD A ....> NO
CHILD B ....> NO
CHILD C ....> NO
CHILD D ....> NO
PIN CONFIGURATION OPTION2 PIN CARD [Y,N]
CHILD AB ...> YES
CHILD CD ...> YES
BYPASS CAPACITOR TO 10V/16V PPS (PCON)
1.NON-EXISTENT
2. EXISTENT [1,2] ..............> 1
BYPASS CAPACITOR TO HV PPS (PCON)
1.NON-EXISTENT
2. EXISTENT [1,2] ..............> 1
CONFIGURATION OF DPU
1'ST DPU : STN 1,2 [Y,N] ..........................> YES
2'ND DPU : STN 1,2 [Y,N] ..........................> NO
TEST HEAD 1 DC CONFIGURATION [1-16] .............> 1-8
10V PPS CONFIGURATION [1-32] .............> 1-16
HV PPS CONFIGURATION [1-4] .............>
TEST HEAD 2 DC CONFIGURATION [1-16] .............>
10V PPS CONFIGURATION [1-32] .............>
HV PPS CONFIGURATION [1-4] .............>
1'ST GPIB I/F BOARD 0.NONE
1.BGR-010944X01
2.BGR-010944X02
3.BGR-010944X03
4.BGR-010944X04
5.BGK-012718 [0-5] .........> 0
2'ND GPIB I/F BOARD 0.NONE
1.BGR-016793 (DPU I/F)
2.BGR-010944X05
3.BGK-012718X02 [0-3] .........> 1
DMM TYPE 1.TR6861
2.R6871E
3.R6551
4.R6552T [1-4] .........> 3
AC FREQUENCY (HERTZ) [50,60] ........................> 60
CONFIGURATION OF TG
OPTION CLOCK : 48 EDGES [Y,N] .......................> YES
CONFIGURATION OF ALPG
SUB PG [Y,N] ....................................> YES
CONFIGURATION OF FM
NUMBER OF FM BOARD [0-8] ...........................> 8
SIZE OF FM BOARD [1-4] (1=72M,2=144M,3=288M,4=576M) ..> 2
PATTERN MEMORY [Y,N] ................................> NO
SUB FM [Y,N] ................................> NO
CONFIGURATION OF MRA
MRA2/3 OPTION [Y,N] ...........................> YES
MRA OPTION TYPE [2,3] (2=MRA2,3=MRA3) ...........> 2
TYPE OF CBU BOARD [1,2] (1: BGR-019267 )
(2: BGR-019267X02) ....> 1
NUMBER OF CBU BOARD [1,2] ...........................> 2
TYPE OF FBM BOARD [1-5] (1= 4M*36BIT)
(2= 2M*72BIT)
(3= 4M*72BIT)
(4= 8M*72BIT)
(5=16M*72BIT) .............> 1
NUMBER OF FBM BOARD [1-8] ...........................> 8
COMPRESSION FUNCTION [Y,N] ...........................> NO
CONFIGURATION OF VRAM
VRAM3 OPTION [Y,N] ...........................> NO
CONFIGURATION OF FCDC
PIN CPE SEL [Y,N] ...........................> NO
END SAVE
